How To Install Pack A Shelf
How does Pack A Shelf work? (Modular)
or View all Videos on YouTube:
3Dpro Melbourne YouTube Channel
or Follow these steps below:
Lets Get Organised!
Our patented modular Aluminium Shelving
System is designed to enhance storage solutions in vehicles, trailers,
garages, workshops and more!
This innovative system is engineered for compatibility
with the Milwaukee Packout system, providing a versatile and robust
organisational tool. Constructed from heavy duty, laser-cut, and folded
5052 aluminium, the shelving system features adjustable shelves,
customizable configurations, and secure mounting options.

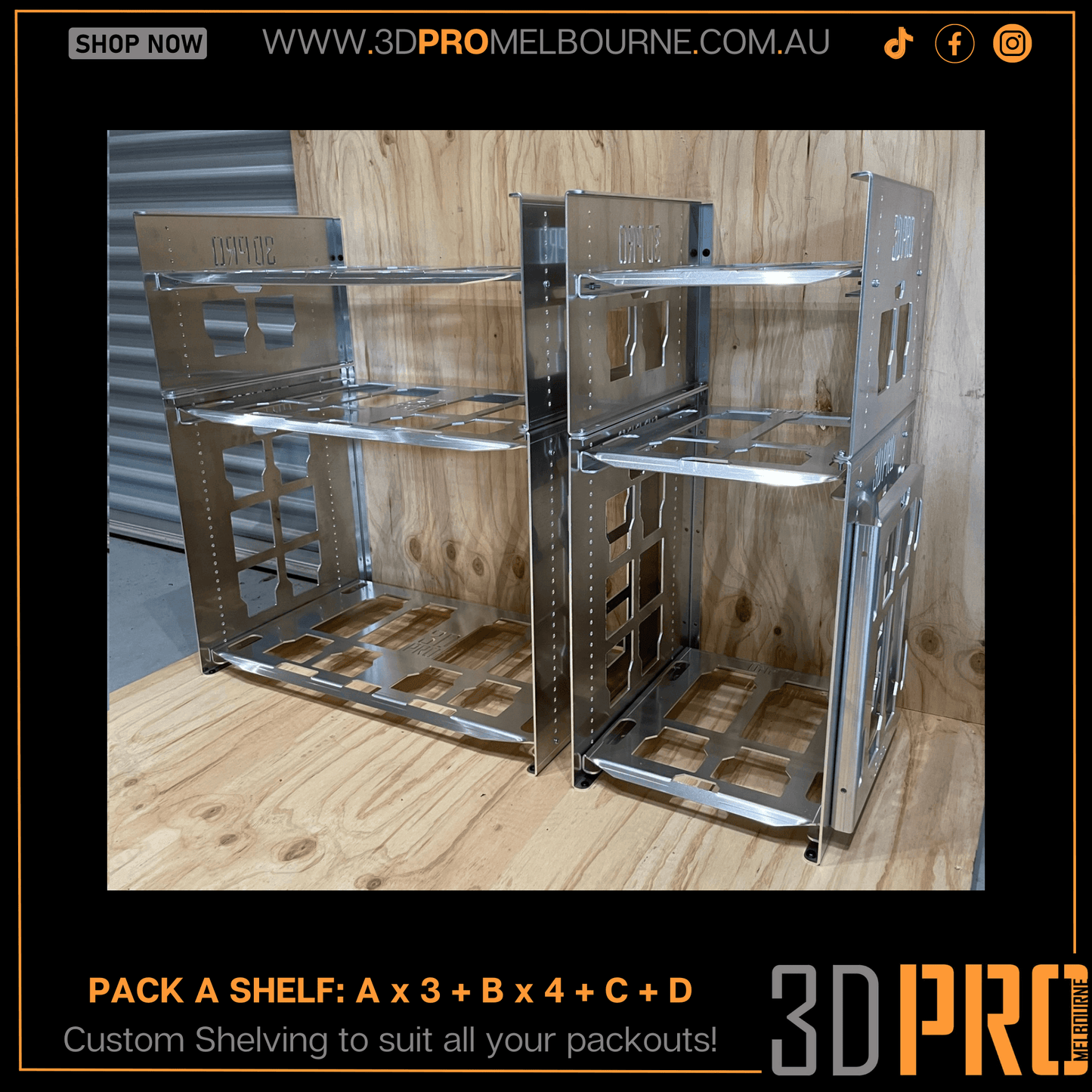

The design includes modular components such as:

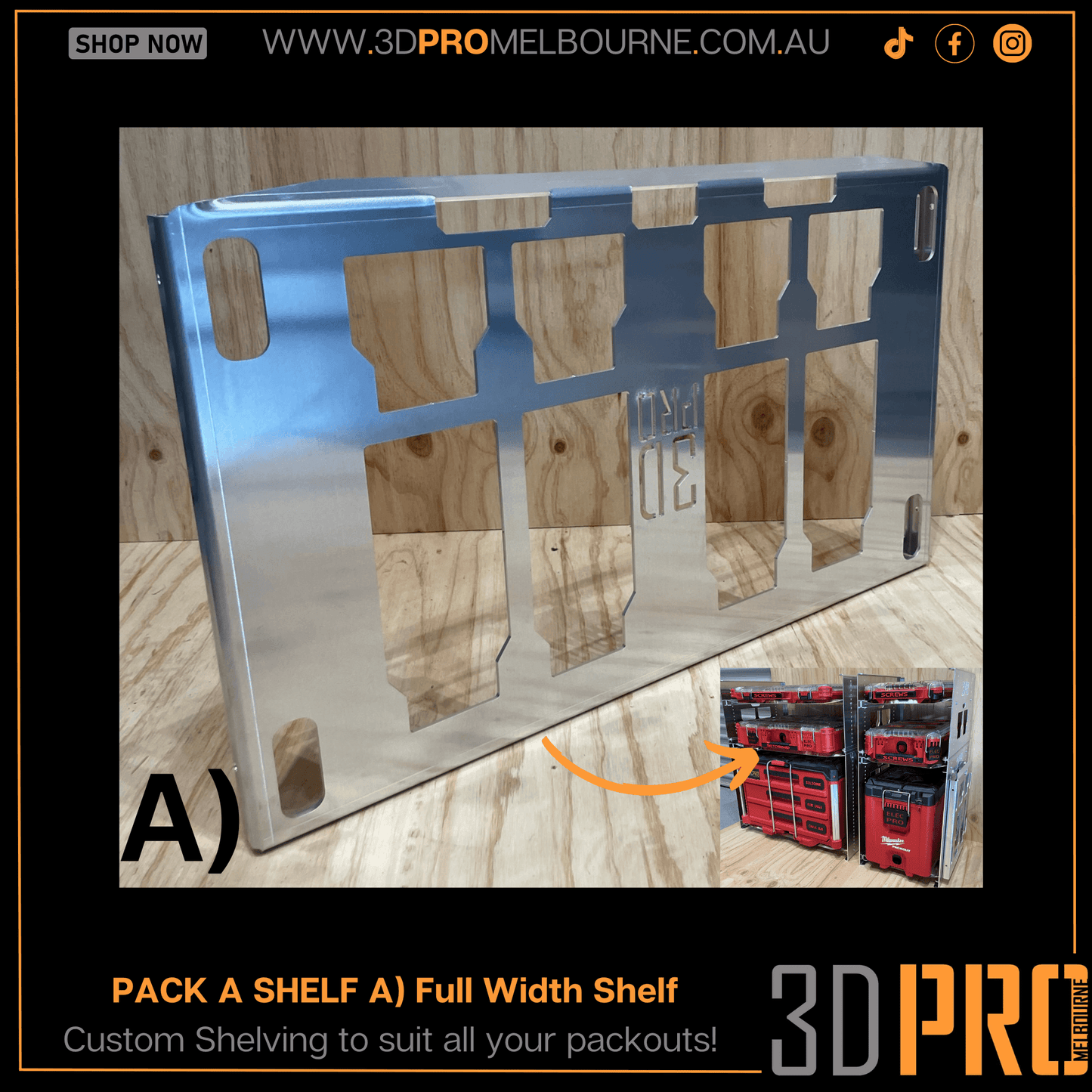

A) Full-width shelf
B) Half-width shelf

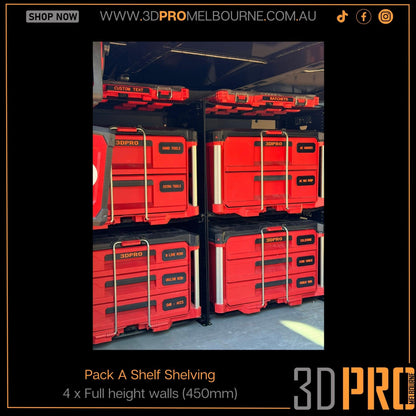

C) Full-height walls (450mm high)
D) Half-height walls (250mm high)
E) Packout 2.0 dual slider
F) Packout 1.5 Mini Slider
All sold separately to allow you to tailor it to your
own specific needs and wants!
The system’s modularity allows for easy customisation and
reconfiguration to meet specific user needs, offering significant improvements
in storage efficiency, accessibility, and space utilisation.
STEP 1:
Watch our YouTube videos to getting better deep
understanding of Pack-A-Shelf
https://www.youtube.com/@3DPROMelbourne
STEP 2:
Measure your required space availability in your
desired location:
- Height x Width x Length
STEP 3:
Takes notes of what Packout boxes you currently have and
what you may want in the future
- This will help you determine how many shelves you need
(full width or half width shelves)
STEP 4:
Use our online 3D builder to design a modular
system that will fit in your desired space
- (CLICK HERE) to
build your dream setup (beta mode)
STEP 5:
Choose if you want shelving and walls to be on a
dual slider or fixed in position
- Some tradespeople want their Packout to slide out from
your vehicle
- Some tradespeople just want it fixed in position
(stationary walls and shelving)
or a combo of both!

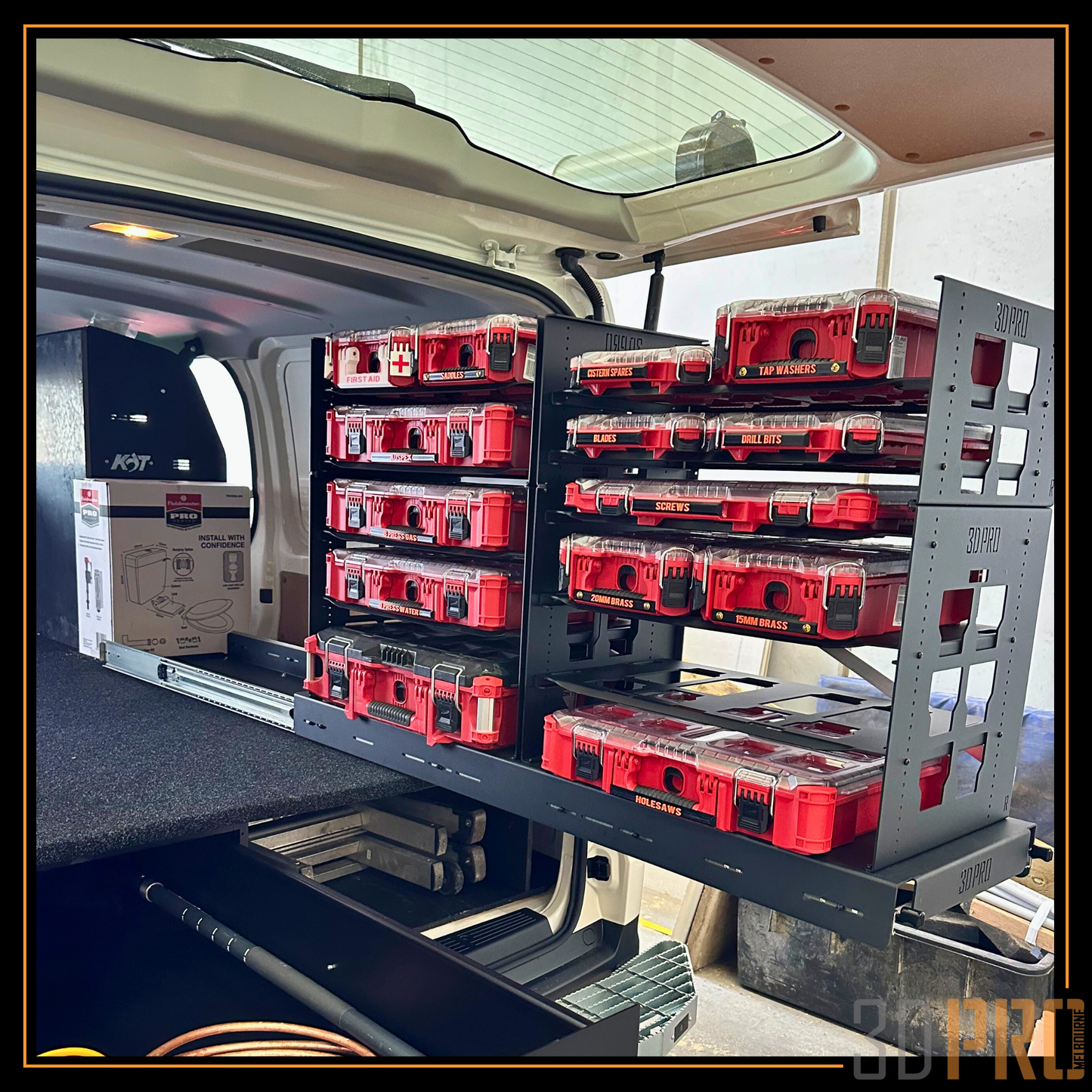

STEP 6a: (with dual slider and mini slider)
So you want to be a PRO and use our dual slider?
- Our dual slider comes pre-assembled for (right-hand
use) but the slider top can be flip 180 degrees to allow for left-hand use)
- Our dual slider can be used on its own
and allows you to lock in your packout boxes
- Great for areas with limited height availability
eg: utes with roller cover
OR
- You can add our pack a shelf walls and shelving on top
of the dual slider to maximise your storage.
The ultimate way to be more organised and efficient on
site.
STEP 6b: (without dual slider) or adding walls and
shelves to slider
Want to have stationary Pack a shelf walls and shelving?
- 1. Pick how many Pack a shelf walls
you need
We have two modular options for walls: c) full
height walls 450 mm in height and d) Height height walls
250 mm in height

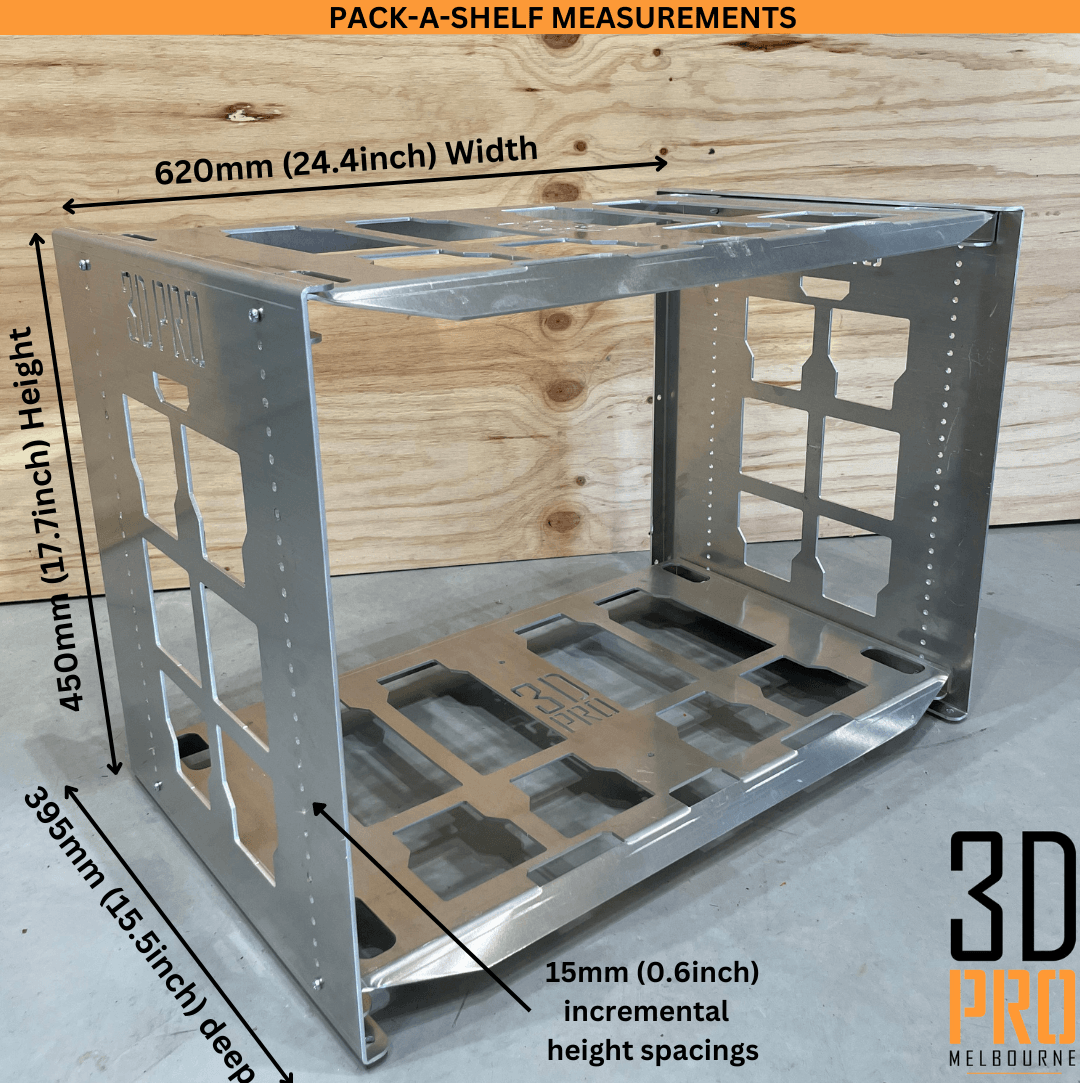

Each walls have 20mm lip with m5 threaded holes top and
bottom to allow the walls to stack on each other
Each walls has side holes every 15mm allowing
the shelves to bolt in any desired height!
STEP 7:
Now let's choose what size Pack a shelf shelves you need
- We have two modular options for you:
A) Pack a shelf full width shelf (great for
all standard size packout - drawers - full width items)

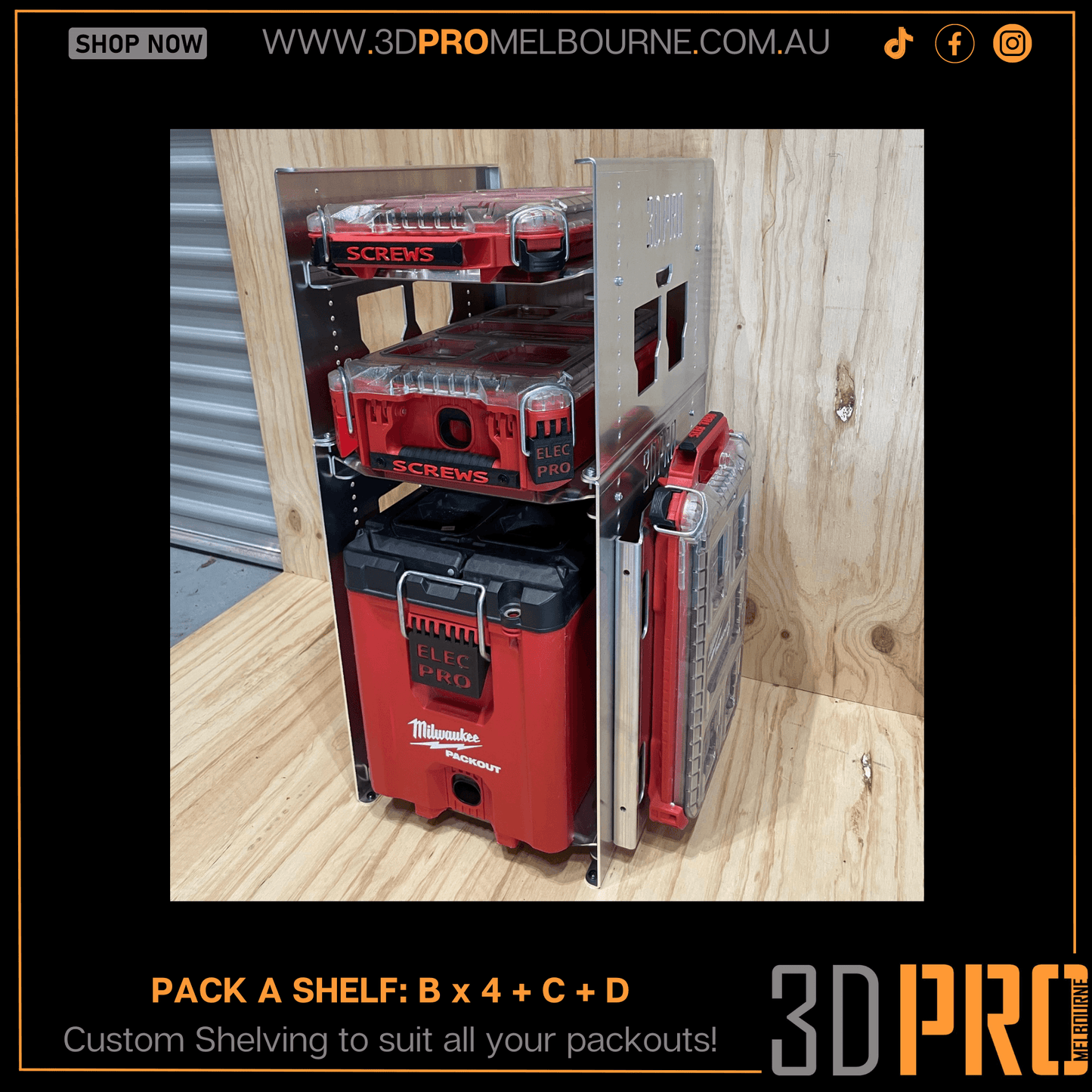

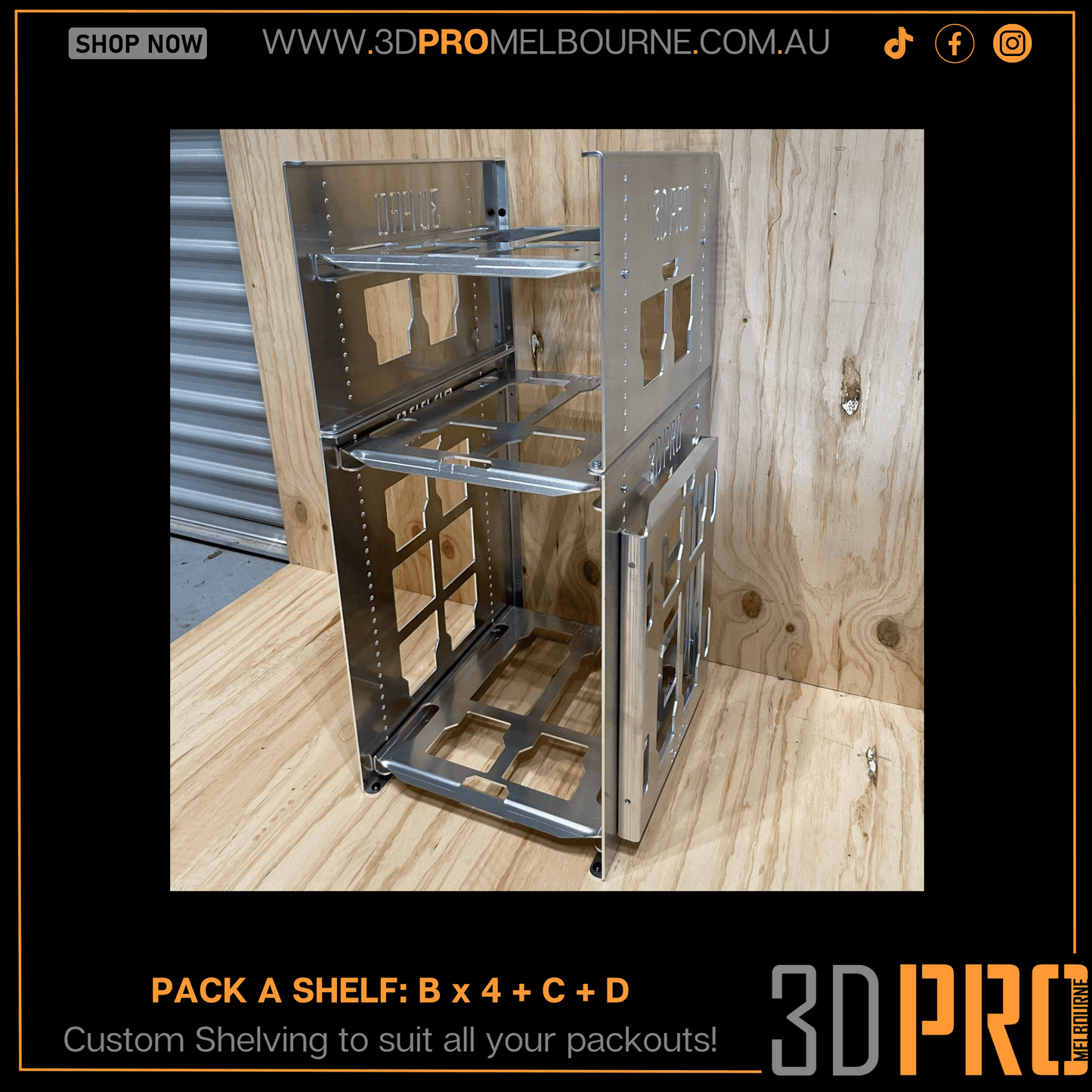

B Pack a shelf half width shelf (great for
ammo can, half width organisers, etc)
Both size shelves work with our walls and could use a
combo of both
Example: You only have 1000mm in WIDTH
available: You could use a full width shelf (625mm wide) next to a half width
shelf (320mm wide) = total width: 945mm
STEP 8:
How many shelves do you need?
- There is no simple answer to this but that's why our
system is so vertisal and customisable to your needs!
If you have 2 x sets of drawers that you need stacked on
top of each other, you will only need 2 x a) Full width shelves and your 2 x c)
full height walls (900mm in height)
But if you have 2 x c) full height walls (900mm in height
but you have 6 x slimline full width packouts) and want all of them to be on a
individual shelf each. Then you will need 6 x a) full width
shelves.
Its endless options to suit your
needs.
STEP 9:
You have your dual slider, walls and shelves sorted now?
Add each item individually to your cart and check out
through our online cart!
We ship worldwide or can-do local
pickup from our 3Dpro HQ (Melbourne, Australia)
STEP 10:
Install your new modular aluminium shelving into your
desired space!
Welcome, you are now a PRO!
Enjoy being productive and efficient on site, so you can
spend more time off site doing what you love off site!
Watch how our shelving will boost your
productivity allowing you to complete jobs in record time. Not
spending 20mintues looking for a 10mm socket, because your van is a complete
mess.
STEP 11:
Still confused? That's okay, designing the perfect
modular system is hard!
BOOK IN A CONSULTATION CALL with our founder
Luke via phone call, zoom or in person at our Melbourne 3DPRO HQ.
Its fully redemple on pack a shelf products when your
happy with your design!
STEP 12: (BONUS STEP)
- Want to become even more of PRO tradie?
You have all this milwaukee packout and no idea whats in
each packout?
Using our 3Dprinted labels and latches to
customise your stack!
- Telling your apprentice where your 90mm hole-saw
is, knowing it’s in a packout with a label. Your apprentice will only take 30
seconds and not 10 minutes .... maybe...
Disclaimer: We are not responsible for any
apprentices who are not capable of simple instructions!
