A decent ute canopy setup should make gear easier to find and quicker to grab.

That’s it.

You don’t need to fill every wall or buy every accessory straight away. You need a layout that suits what you carry, keeps the heavy stuff under control and doesn’t turn into a mess after two weeks.

Canopy fitout options at a glance

These are rough ranges. A basic DIY build and a full custom setup with power, drawers and professional fitting aren’t the same thing.

Still deciding between shelving, drawers and slides? Take a look at our in-depth guide for some inspiration on your build.

Start with the gear, not the empty canopy

An empty canopy makes everything look like it’ll fit.

Then the fridge goes in. Then the battery. Then the toolboxes. Suddenly the side door won’t open properly and the thing you use every day is buried at the back.

Before buying anything, split the gear into a few groups:

• Stuff you use every day

• Heavy gear

• Small parts

• Expensive gear

• Wet or dirty gear

• Things that only come out occasionally

The everyday gear should be near the opening.

Heavy stuff stays low.

Small parts need drawers, tubs or cases.

Rarely used gear can sit higher or further back.

Don’t build the whole layout around one tidy photo you found online. That setup was made for someone else’s tools.

Measure the canopy properly

Measure the usable space, not the brochure size.

You’ll need:

• Clear internal width

• Clear internal depth

• Available height

• Door opening

• Wheel-arch intrusion

• Internal braces

• Locks and hinges

• Anything already mounted inside

For sliders, measure the space outside the canopy too.

A slider that fits inside but hits a wall, trailer or parked car when it opens isn’t much use.

Take photos while you measure. It’s easier to plan when you can see where the frames, wiring and awkward corners are.

Work out the floor layout first

The floor is where most of the weight ends up.

Fridges, batteries, water tanks, generators and heavy toolboxes should sit low. That keeps them easier to load and helps avoid a top-heavy setup.

Think about the order you use things.

A fridge you open ten times a day shouldn’t sit behind two toolboxes. A generator used twice a year doesn’t need the best spot by the door.

Try marking the footprint of each item with tape before drilling anything.

It looks rough, but it’ll show you pretty quickly whether the doors can open and whether you can still get the gear out.

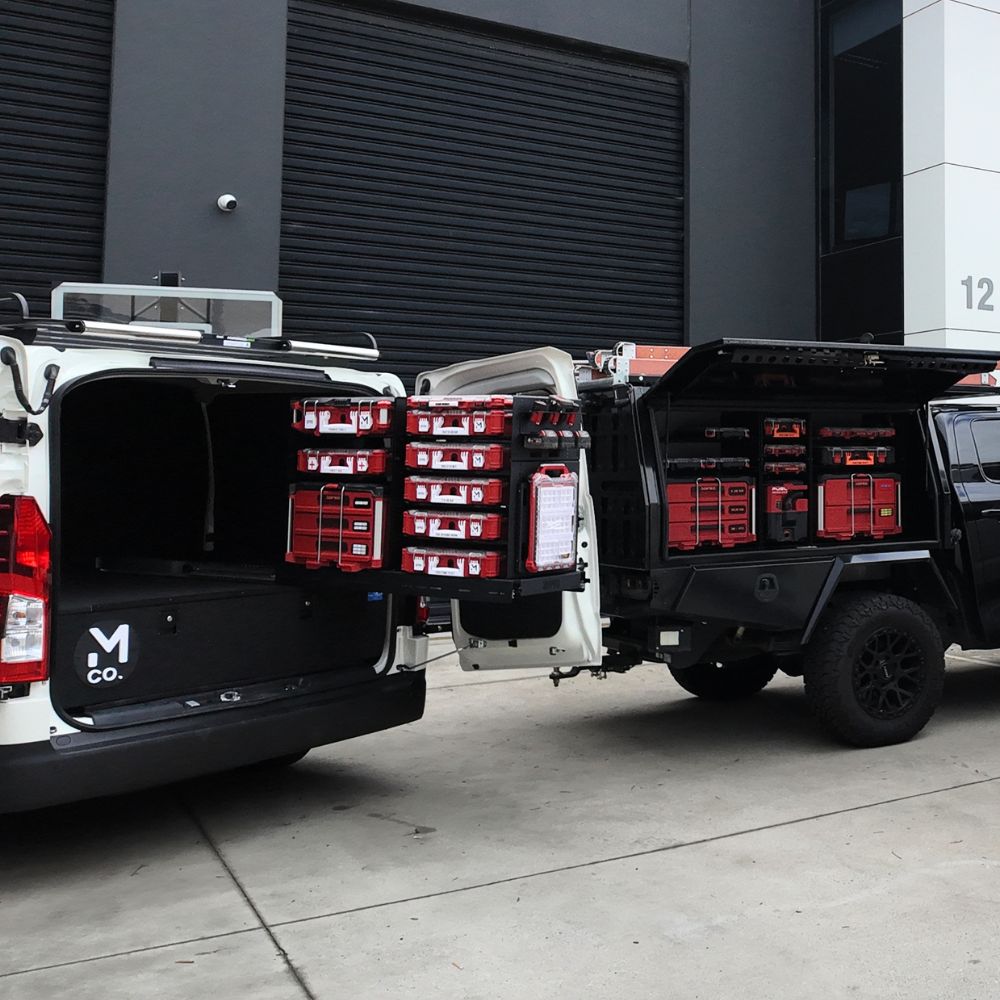

Add shelving where the space is being wasted

A lot of canopy setups use the floor and ignore everything above it.

That’s where shelving earns its keep.

Shelves work well for:

• Packout boxes

• Parts tubs

• Recovery gear

• Power tools

• Camping gear

• Consumables

• Cleaning gear

The main advantage is that you can see what’s there.

You don’t need to open four drawers looking for one box of screws.

Shelving also gives you more flexibility. If the tools change, you can move the shelf position instead of rebuilding the whole fitout.

Our Pack-A-Shelf canopy shelving uses modular wall sections with mounting holes every 15mm, so shelf heights can be set around the boxes you actually carry.

Drawers are useful, but don’t overdo them

Drawers are good for smaller gear.

Sockets, fittings, straps, recovery gear and cooking equipment all make sense in drawers. They keep things contained and stop loose parts rolling around.

The problem starts when the whole canopy becomes drawers.

They add weight. They take up floor space. Deep drawers also have a habit of swallowing small gear at the back.

A mixed setup usually works better.

Use drawers for the small stuff. Use shelves for boxes and tubs. Keep some open space for awkward gear that doesn’t fit anywhere neat.

The Canopy Shelving Buyer’s Guide goes deeper into where drawers make sense and where they start creating more weight and dead space than they’re worth.

Put slides under the gear you don’t want to lift

Slides are worth it for heavy items you use often.

Fridges are the obvious one. Generators, large toolboxes and Packout stacks can also make sense on a slide.

The main thing to check is extension space.

A slide body may fit inside the canopy, but you still need enough room outside for it to pull out.

Check:

• Body length

• Clear width

• Trigger or handle clearance

• Door opening

• Full extension distance

• Loaded weight

• Mounting strength

A slide carrying 100kg isn’t the same as a shelf holding a small toolbox. The floor and fixings need to be up to it.

Plan power before you cover the walls

If you’re adding a second battery, fridge, lights or chargers, sort the power layout early.

Running cables after the shelving and drawers are installed is a pain.

Work out where the battery, fuse box, outlets and switches will sit. Leave access to fuses and isolation switches. Don’t bury them behind a shelf that needs to come apart every time something trips.

For a work ute, common additions include:

• Interior lights

• USB and 12V outlets

• Tool battery chargers

• Inverter

• Compressor

• Fridge outlet

Use proper cable protection and fusing.

If you’re not comfortable with vehicle electrics, get it fitted properly. A messy shelf is annoying. Bad wiring can burn the vehicle down.

Light the canopy properly

A single roof light in the middle often creates more shadows than light.

Side-mounted LED strips or small lights near each door usually work better. They light the gear rather than the top of your head.

Put switches where you can reach them from outside.

You shouldn’t need to climb into a dark canopy to find the light switch.

Secure everything

Shelves organise the gear.

They don’t stop it moving.

Boxes, fridges, gas bottles, batteries and tools all need to be secured properly. Rough roads and sudden braking can turn loose gear into a problem quickly.

Use:

• Proper mounting points

• Rated straps

• Box latches

• Dividers

• Cargo barriers where needed

• Locking slides

Don’t rely on friction.

If you can move it by hand, it’ll move harder when the ute hits a pothole.

How to use the full height of your canopy

This is where a lot of fitouts fall short.

The bottom section gets drawers and heavy gear. Everything above it becomes empty space.

You can use the height without making the canopy awkward.

Keep heavy items lower. Put lighter boxes and less-used gear higher. Leave enough room to lift boxes off the shelf without hitting the roof.

Adjustable shelves make this easier because you’re not stuck with fixed gaps.

A modular setup can also be changed later. Add another shelf. Move one up. Remove one when taller gear needs to go in.

That’s usually more useful than building a perfectly packed canopy that only works with one exact set of tools.

See the full ute canopy shelving range for shelf and slider options.

Don’t forget payload

The canopy is already weight.

Then you add drawers, shelving, batteries, water, tools, a fridge and everything else.

It adds up fast.

Check the vehicle’s payload and axle limits before building a heavy fitout. Don’t assume that because the gear physically fits, the ute can legally carry it.

Also think about where the weight sits.

A lot of heavy gear behind the rear axle can affect handling more than the same weight mounted further forward.

For bigger touring or work builds, a weighbridge check is money well spent.

Leave some empty space

This sounds wrong until you’ve lived with a fully packed canopy.

A bit of free space gives you somewhere to put the odd toolbox, delivery, wet jacket or gear that wasn’t part of the original plan.

If every shelf is packed tight on day one, the setup has nowhere to go.

Leave one open section.

You’ll use it.

Test the setup before finishing it

Don’t drill every hole on the first afternoon.

Mock it up. Use timber blocks, cardboard boxes or tape to mark positions. Load the gear in and use the canopy for a few days.

You’ll notice things straight away:

• A box lid hits the shelf above

• The fridge door opens the wrong way

• The drawer blocks the canopy lock

• The most-used tool is in the worst spot

• The slider can’t extend fully

Fixing that before the final install is easy.

Fixing it after everything is bolted down isn’t.

Not sure what setup suits you?

Start with the Canopy Shelving Buyer’s Guide.

It compares shelving, drawers and slides side by side so you can work out what suits the gear, budget and canopy you’ve got.

Still unsure after that? Send us a few photos and measurements.

We can help with a custom design consultation before you start ordering parts.

Ute canopy fitout FAQs

How do I set up a ute canopy?

Start by listing the gear you carry and how often you use it.

Put heavy items low, everyday gear near the doors, then add drawers, shelves and slides around that layout.

What should I put in my ute canopy?

That depends on whether it’s used for work, touring or both.

Most setups need space for tools or camping gear, first-aid equipment, recovery gear, lighting and some empty room for odd-sized items.

How do I make the most of canopy space?

Use the walls and height, not just the floor.

Shelving above drawers or slides gives you more storage without burying everything in deep compartments.

Shelving or drawers for a canopy?

Shelving is better for boxes, tubs and gear you want to see.

Drawers are better for small parts and loose equipment. Most useful setups use a mix of both.

How much does a canopy fitout cost?

A basic DIY fitout can start at a few hundred dollars.

A full setup with drawers, slides, power, lighting and professional installation can run into several thousand.

Build the setup around your gear

A good canopy fitout doesn’t need to be complicated.

Keep the heavy gear low. Put the daily stuff near the door. Use shelving to stop wasting the height. Leave room for the setup to change.
